Item

Specifications Description

Remarks

TFT LCD Screen

Size(Inch)

Pixel

Aspect Ratio

2.4"

320*240

4:3

Suitable for Business card size

4.3"

480*272

16:9

Suitable for A5 card size

5"

480*272

16:9

Suitable for A5 or A4 card size

7"

800*480

16:9

Suitable for A5 or A4 card size

10.1"

1024*600

16:9

Suitable for A4 card size

Rechargeable Battery

Capacity

Average Played Time

300mAh

For 2.4"

1-1.5 Hours

Please choose the battery according to actual demand

500mAh

For 4.3"

1-1.5 Hours

1000mAh

For 7"

2-2.5 Hours

2000mAH

For 10"

2.5-3 Hours

Read/write Memory

Capacity

Video time

If you want to keep the file with high quality in the Memory, please choose the Memory Capacity according to the video files

128MB

9-10 minutes

256MB

20-25 minutes

512MB

40-45 minutes

1GB

80-90 minutes

2GB

160-180 minutes

Control Buttons

Volume+

When adding buttons to the artwork, the center of each button need to be at least 15mm from the edge of the screen, the edge of the card, or another button

Volume-

Play/Pause

Fastward

Rewind

Video Selection

USB Port

Mini or Micro type

Usually Mini type

Switch

Magnetic switch or ON/OFF button switch

light-operated switch is also available

Video Format

AVI, MP4, RMVB ect.

Please make sure the video is 16:9

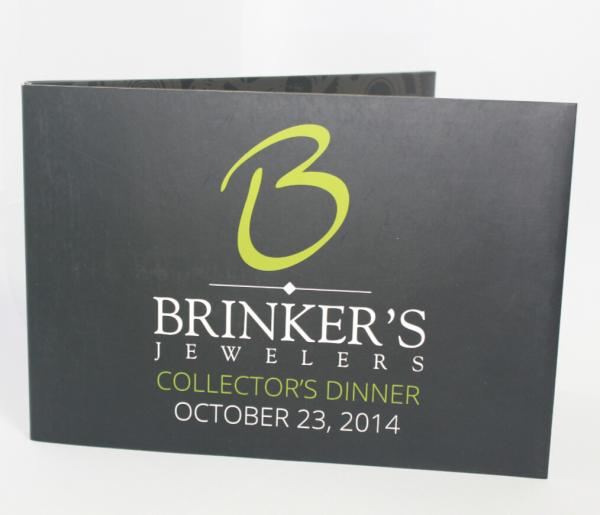

Brochure Card size

A5,A4 or other sizes

Customized

Printing

4 Color CMYK printing

Pantone Color will add the cost

Screen window

Screen size

Window size

2.4"

48*36 mm

The screen outline can be moved within the boundary of the card, but must be at least 15mm clear of the edge of the card, the buttons and the USB port.

4.3"

95*54 mm

5"

111*62 mm

7"

153*86 mm

10.1"

222*125 mm

Special Finishes

When supplying guides for special finishes, please create the area of the finish as a separate spot color within the artwork and rename in color palette to the chosen finish e.g. (Spot UV, foil, etc.) This must be made clear on the artwork to prevent mis-production.
